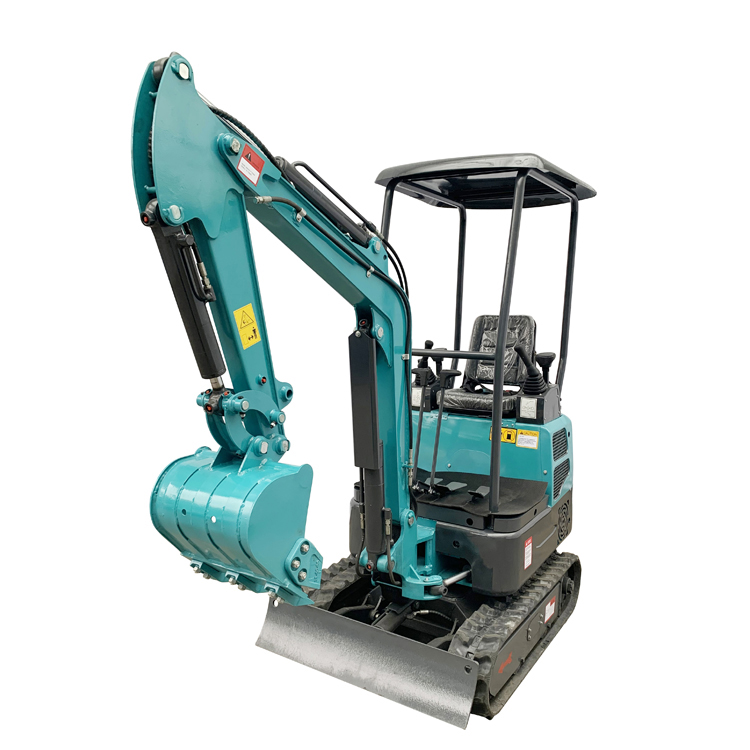

| Model: | ELCX11B |
| Operating Weight | 1150 KGS |
| Bucket Capacity | 0.03 CBM |
| Width of Bucket | 380 mm |
| Length of Swing Arm | 1480 mm |
| Length of Bucket Arm | 793 mm |
| Oil capacity |
| Fuel Tank | 7.6 L |
| Hydraulic Oil Tank | 12 L |
| Engine Oil Change | 1.5 L |
| Coolant Liquid | No |
| Hydraulic System |
| Whether the Hydraulic Crushing Pinpeline is Standard | Yes |
| Hydraulic Pilot Operating System | Yes |
| Engine |
| Model of Engine | KOOP KD192F |
| Rated Powder | 7.6/3000 (Kw/rpm) |
| Max. Torque | 25 |
| Displacement | 0.499 |
| Number of Cylinders | 1 |
| Cylinder diameter × Stroke | 92×75 |
| Type of Cooling | Air Cool |
| Fuel Consumption Rate | 275 |
| Working Area |
| Maximum Digging Radius | 2890 mm |
| Maximum Digging Depth | 1550 mm |
| Maximum Digging Height | 2600 mm |
| Maximum Discharge Height | 1890 mm |
| Width of Bulldozer Plate × Height | 930*205 mm |
| To Lift or Push Deep | 135/255 mm |
| Arm Rotation Angle | Left50°/ Right70° |
| Main Size |
| Total Length of Transport | 2940 mm |
| Total Width of Transport | 930 mm |
| Total Height of Transport | 2140 mm |
| Width of Bus | 840 mm |
| Counterweight Clearance Above Ground | 360 mm |
| Track Grounding Length | 900 mm |
| Total Length of Track | 1220 mm |
| Width of track plate | 180 mm |
| Total Width of Track | 930 mm |
| Caterpillar track | 897 mm |
| Minimum Ground Clearance | 110 mm |
| Minimum Turning Radius of the Front Working Device | 1350 mm |
| Tail Radius of Turn | 780 mm |
