Product Description

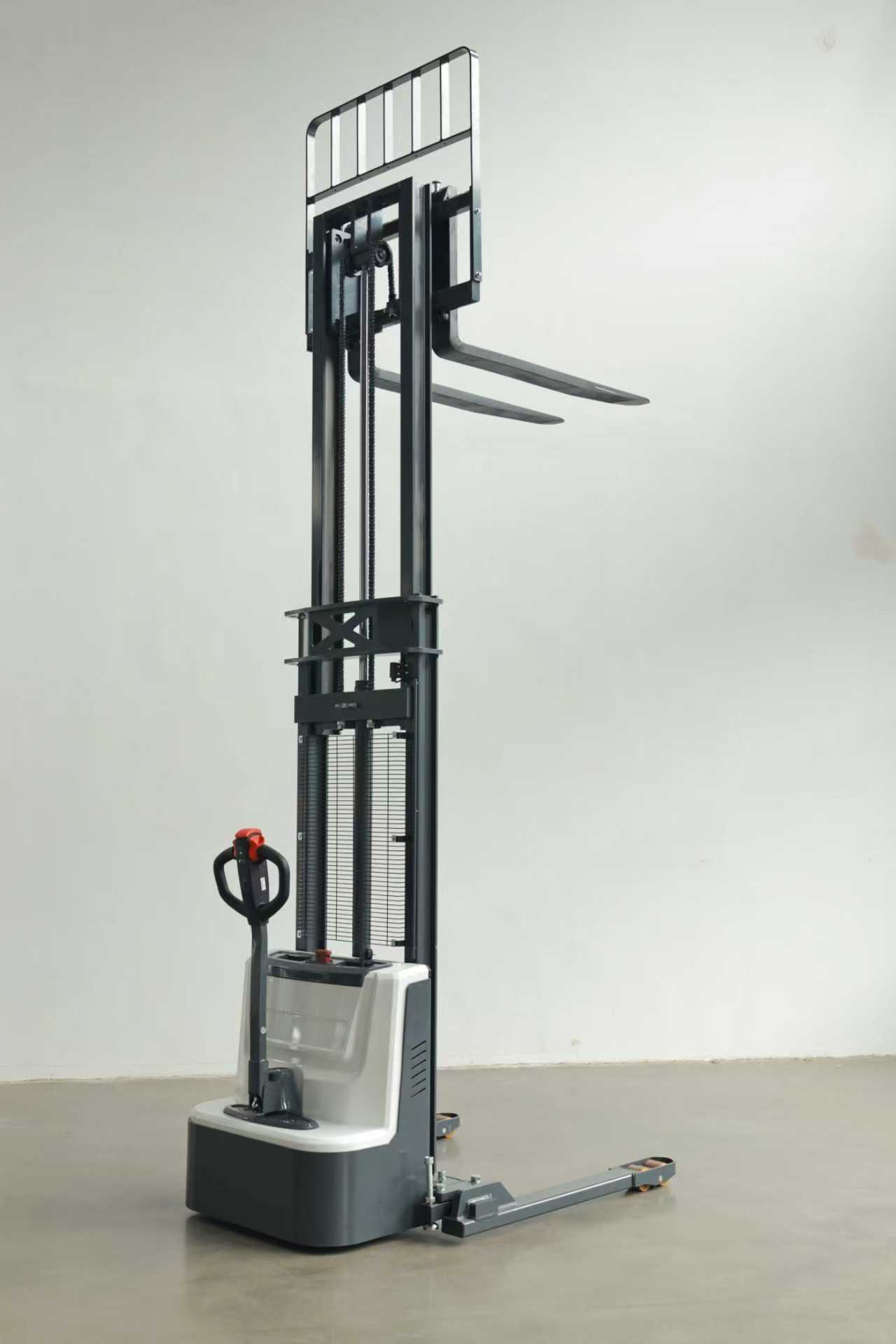

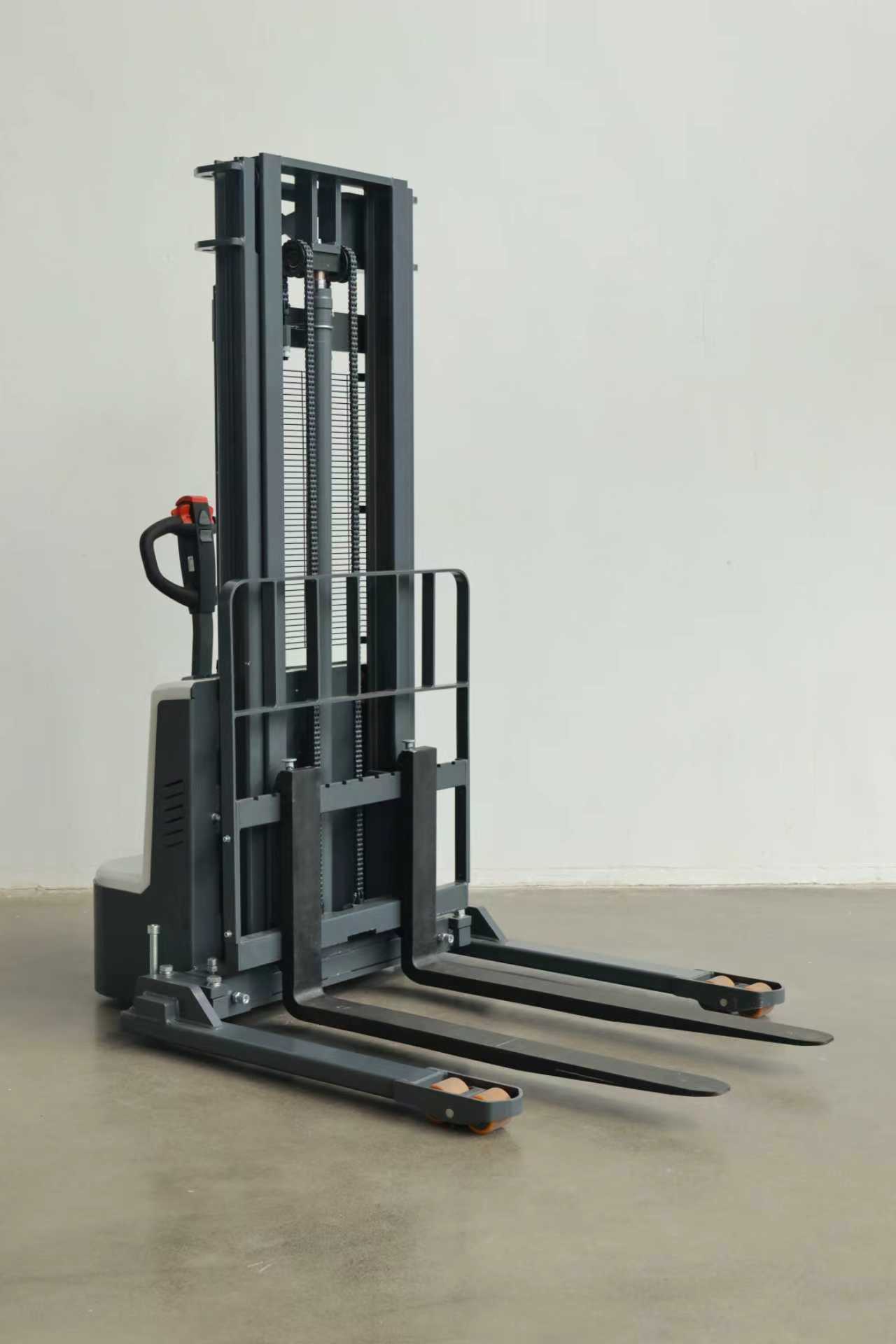

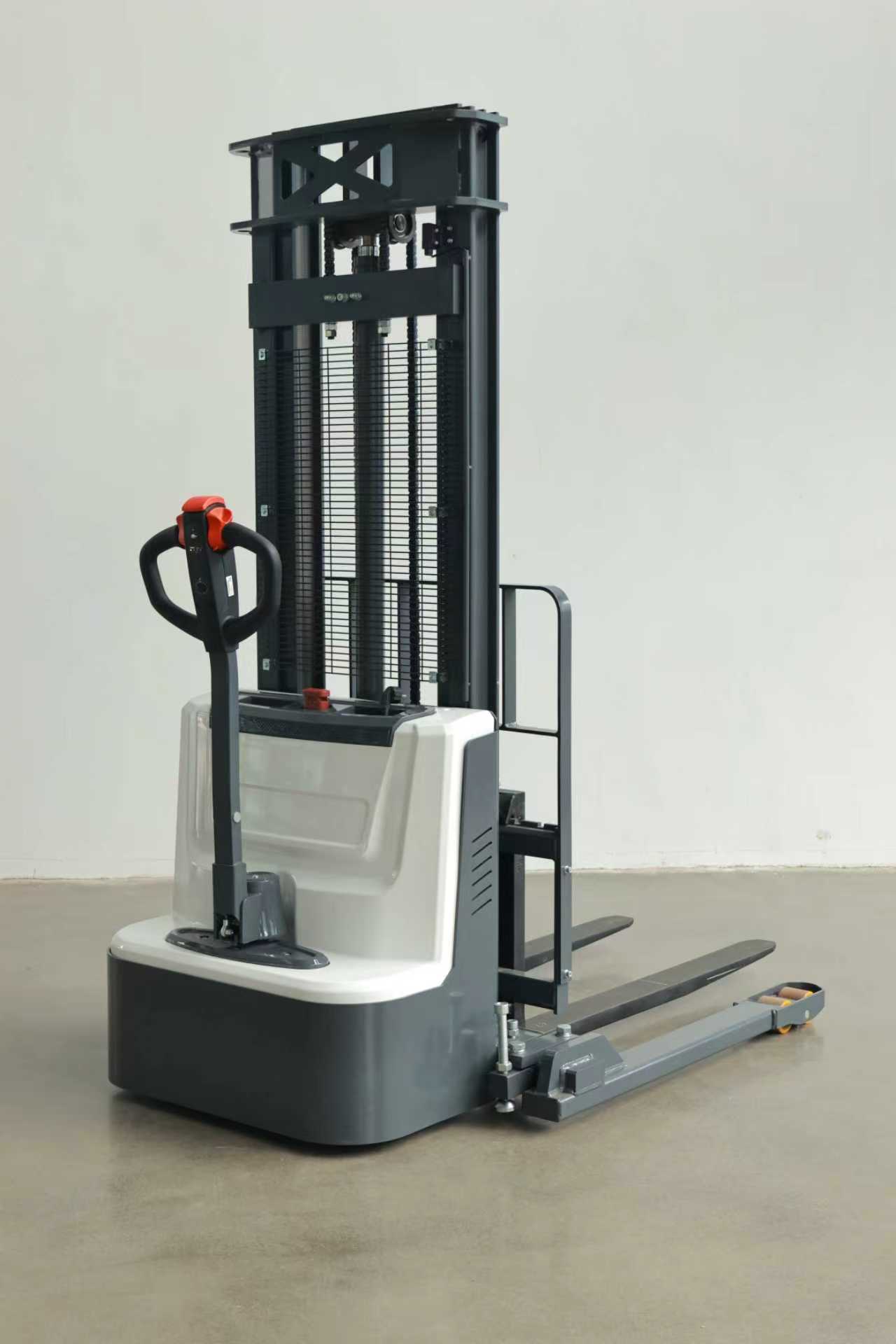

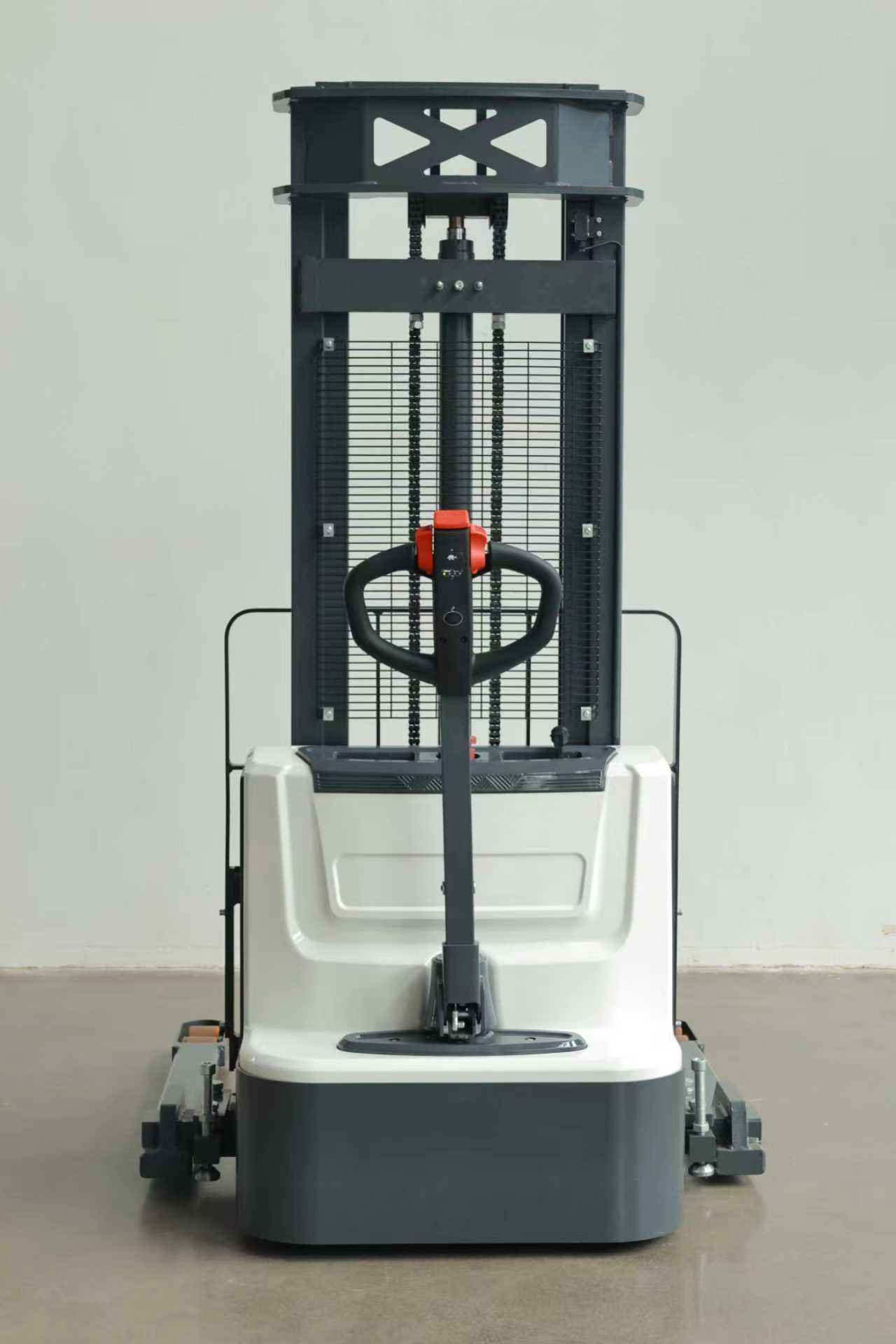

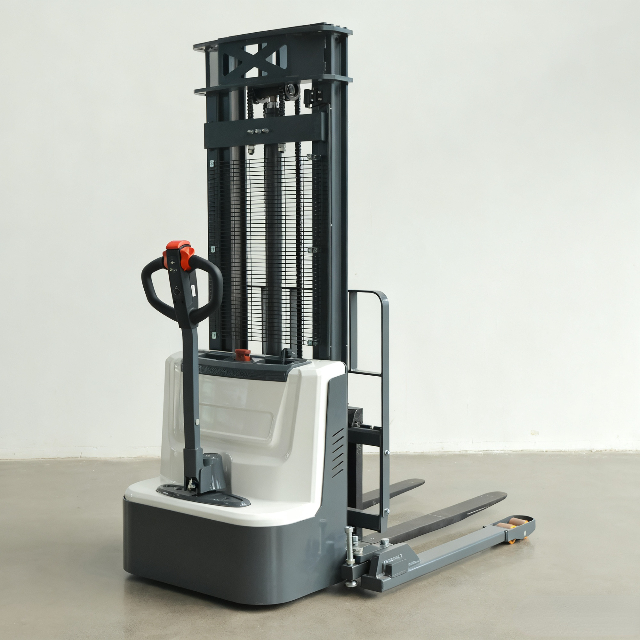

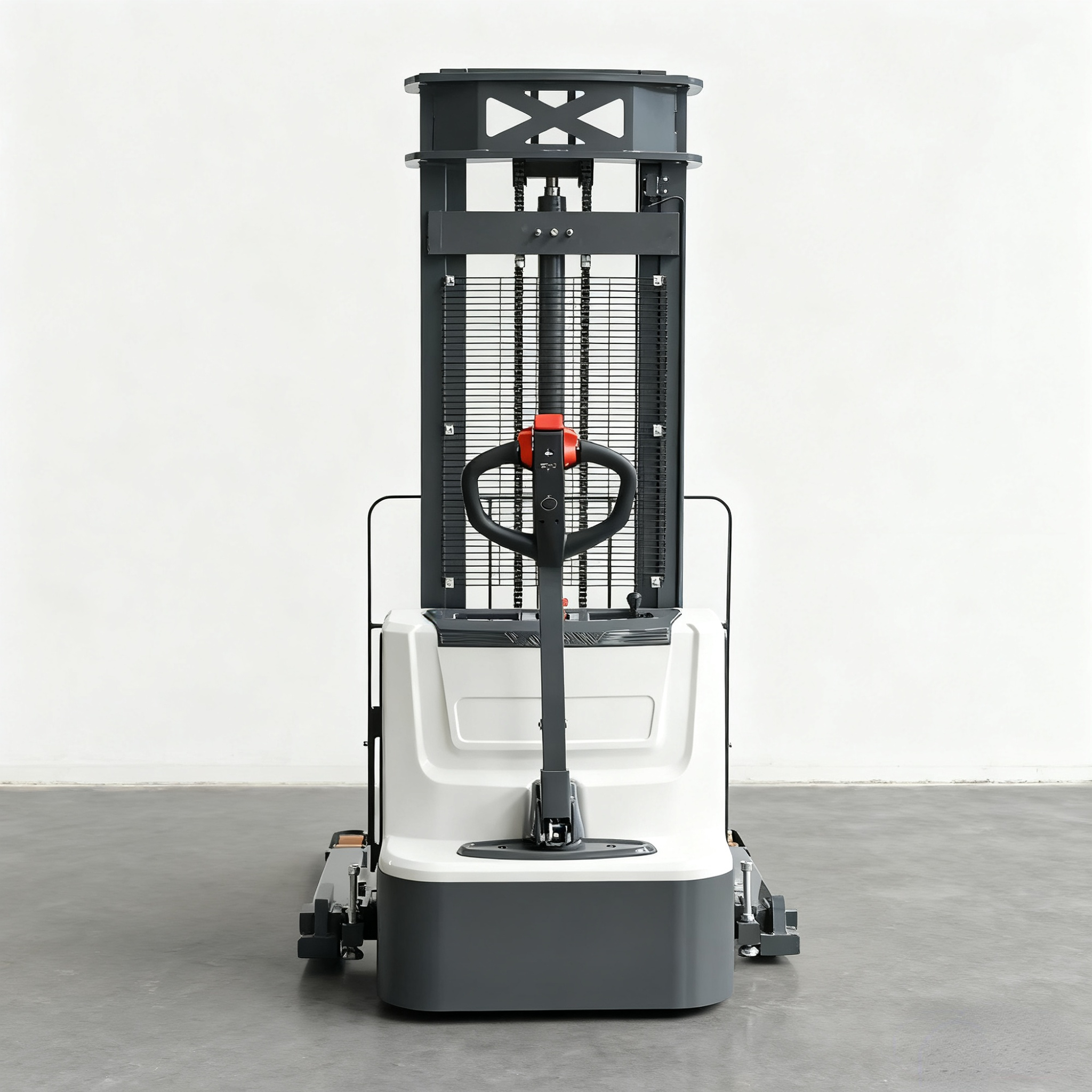

Everlift ELES-12J ELES-15J CE Certified 1.5 Ton Dual Lift Electric Pallet Stacker with Lithium Battery OEM Manufacturer
CHARACTERlSTICS:
Comfort and Energy Saving
Stable and Reliable
Intellgent security
convenient Maintenance

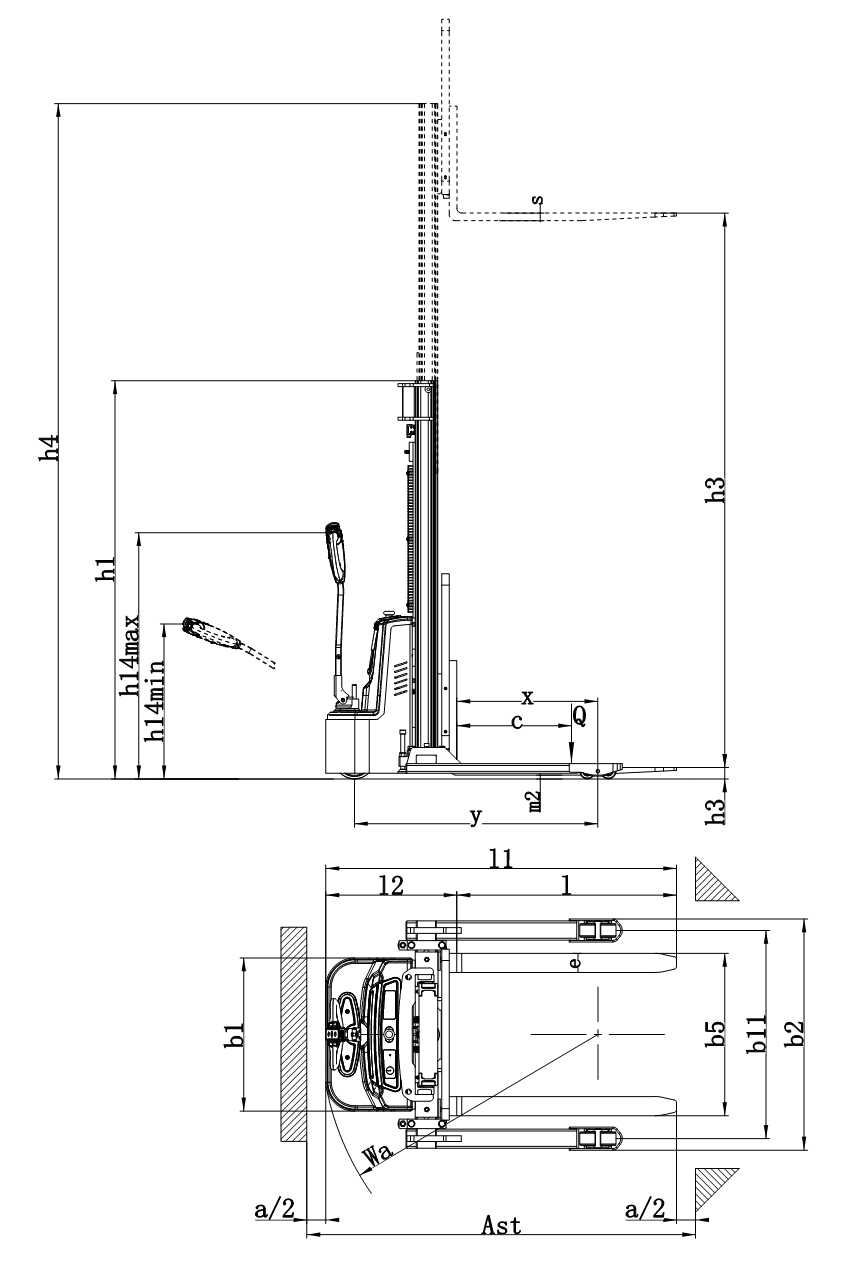

Industrial truck type table according to VDI 2198 | ||||
Features | 1.2 | Model | QES15MSL | |
1.3 | Powertrain (Electric, Diesel, Gasoline, LPG, Electric) | Electric | ||
1.4 | Drive Type (Manual, Walk-Behind, Stand-Up, Sit-On, Order Picker) | Walk-behind | ||
1.5 | Rated Capacity | Q(t) | 1.5 | |
1.6 | Load Center Distance | C(mm) | 600 | |
1.8 | Front Overhang | x(mm) | 738 | |
1.9 | Track | y(mm) | 1275 | |
Weight | 2.1 | Weight (Including Battery) | Kg | 765 |
2.2 | Axle Load (Drive Side/Load Side) Fully Loaded | Kg | \ | |
2.3 | Axle Load (Drive Side/Load Side) Unladen | Kg | \ | |
Wheels | 3.1 | Tires (Rubber, High-Performance Elastomer, Pneumatic, Polyurethane) | Polyurethane wheel | |
3.2 | Wheel Size (Drive Side) | ÆxW (mm) | φ210×75 | |
3.3 | Wheel Size (Load Side) | ÆxW (mm) | φ80×70 | |
3.4 | Steer Wheel Size | ÆxW (mm) | \ | |
3.5 | Number of Wheels (x = Drive Wheel) (Drive Side/Load Side) | 1x/4 | ||
3.6 | Track (Front) (Drive Side) | b10(mm) | \ | |
3.7 | Track (Rear) (Load Side) | b11(mm) | 1090~1490 | |
Dimensions | 4.2 | Mast Height (Lowered) | h1(mm) | 2087 |
4.3 | Free Lift Height (Lifted) | h2(mm) | \ | |
4.4 | Mast Height (Extended) | h3(mm) | 2955 | |
4.5 | Handle Height (Minimum/Maximum Drive Position) | h4(mm) | 4030 | |
4.9 | Height (Lowered) | h14(mm) | 725/1218 | |
4.15 | Overall Length | h13(mm) | 60 | |
4.19 | Length to Fork Lift | l1(mm) | 1843 | |
4.20 | Overall Width | l2(mm) | 690 | |
4.21 | Model | b1/b2(mm) | 802/(1210~1610) | |
4.22 | Fork dimensions | s/e/l(mm) | 40/100/1150 | |
4.25 | Fork arm distance | b5(mm) | 210~850 | |
4.32 | Wheelbase center-to-ground clearance | m2(mm) | 40 | |
4.33 | Pallet aisle width (crossing): 1000x1200 | Ast(mm) | 2303 | |
4.34 | Pallet aisle width (longitudinal): 800x1200 | Ast(mm) | 2259 | |
4.35 | Turning radius | Wa(mm) | 1448 | |
Performance | 5.1 | Travel speed (laden/unladen) | km/h | 4.2/4.6 |
5.2 | Lifting speed (laden/unladen) | m/s | 0.07/0.11 | |
5.3 | Lowering speed (laden/unladen) | m/s | 0.11/0.13 | |
5.8 | Maximum gradeability (laden/unladen) | % | 6/8 | |
5.10 | Service brake | 电磁制动 | ||
Motor | 6.1 | Minimum drive motor power S2 60 | kw | 0.75 |
6.2 | Lifting motor power S3 10% | kw | 2.2 | |
6.3 | Battery (according to DIN 43531/35/36 A, B, C) | \ | ||
6.4 | Battery voltage, rated capacity K5 | V/Ah | 24/85(100) | |
6.5 | Battery weight | kg | 25.5/33.6 | |
6.6 | Energy consumption (according to VDI cycle) | kWh/h | \ | |
Other | 8.1 | Drive control method | 直流速度控制 | |
8.4 | Noise level at the driver's ear | dB(A) | 70 | |
Features | Mast Height (Lowered) h1(mm) | Free Lift Height h2(mm) | Lift h3(mm) | Mast Extendable Height h4(mm) | Minimum Lift + Fork Height h3+h13(mm) |
QES15MSL | |||||
Single Mast | 2135 | — | 1540 | 2135 | 1600 |
Dual Mast | 1635 | — | 1940 | 2605 | 2000 |
1885 | — | 2440 | 3105 | 2500 | |
2135 | — | 2940 | 3605 | 3000 | |
2385 | — | 3440 | 4105 | 3500 | |
Dual Mast Fully Free | — | — | — | — | — |
Triple Mast | — | — | — | — | — |
Triple Mast Fully Free | — | — | — | — | — |
